Instrumentation
Electron Microscopes
The microscopes are housed in specially built environmentally stabilized rooms that are temperature and humidity-controlled. Our Krios instruments are also isolated from vibrations or other disturbances commonly found in the city with anti-vibration tables and additionally fitted with Electro-Magnetic isolation systems.
Transmission Electron Microscopes (TEMs)
TFS – Titan Krios #4 – “Elizabeth”
• 300kV
• Gatan K3 direct detector
⠀⠀⠀⠀◦ 5,760 x 4,092 px
⠀⠀⠀⠀◦ Energy filter
• Volta Phase Plates
• Cs: 2.7 mm
TFS – Titan Krios #5 – “Nathaniel”
• 300kV
• Gatan K3 direct detector
⠀⠀⠀⠀◦ 5,760 x 4,092 px
⠀⠀⠀⠀◦ Energy filter
• Cs: 2.7 mm
TFS – Titan Krios #6 – “Caitlin”
• 300kV
• Gatan K3 direct detector
⠀⠀⠀⠀◦ 5,760 x 4,092 px
⠀⠀⠀⠀◦ Energy filter
• Cs: 2.7 mm
TFS – Titan Krios #7 – “Matthew”
• 300 kV
• Falcon IV direct detector
⠀⠀⠀⠀◦ 4,092 x 4,092 px
• Cs: 2.7 mm
TFS Glacios – “Alison”
• 200 kV
• Ceta-D CMOS detector
⠀⠀⠀⠀◦ 4,092 x 4,092 px
• Falcon IV direct detector
⠀⠀⠀⠀◦ 4,092 x 4,092 px
• Cs: 2.7 mm
Sample Prep
SPT Labtech – Chameleon
Blot-free sample vitrification instrument
Additional EMs
Additional equipment:

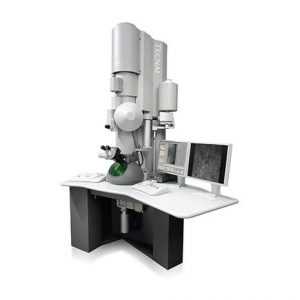

TFS/FEI Tecnai F20
• DE20 direct detector 4k x 5k
• TVIPS F416 CMOS detector 4k x 4k
• Gatan Elsa holder for overnight operation
• Cs: 2.0 mm
• DE20: 29,000X mag: 1.54 Å/pixel
• DE20 : 50,000X mag: 0.87 Å/pixel
Hitachi 7800
• 120kV
• TVIPS F416 CMOS detector 4k x 4k
• Plunge Freezers: FEI Vitrobot IV, Leica EM GP2
• Glow discharger: Solarus and Solarus II
• Mass Photometer: Refeyn One(MP)
